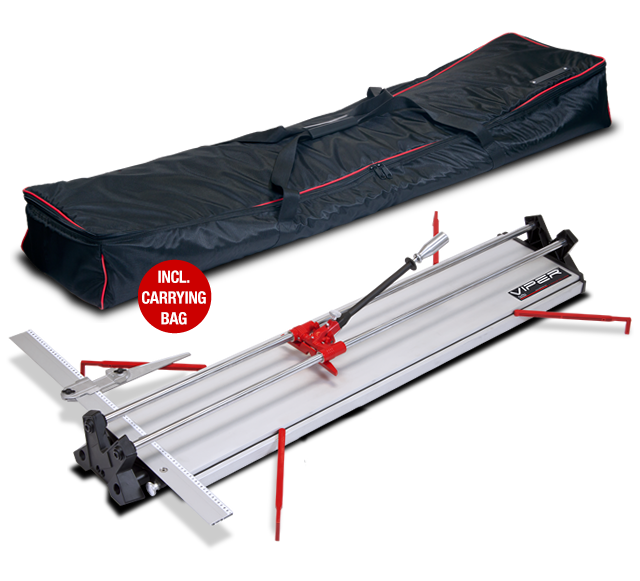

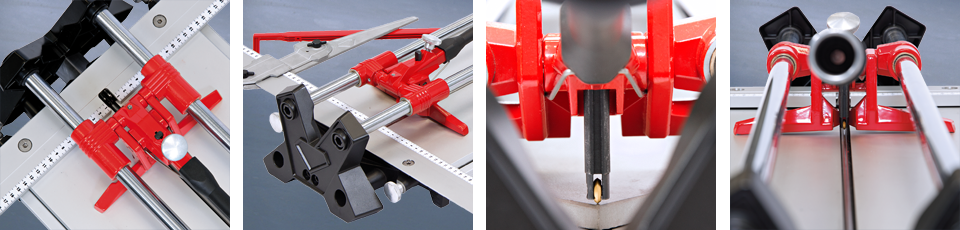

Viper Series
Professional Manual Tile Cutters.
Available as 30", 37"and 51" models
- Hardened lightweight aluminum
baseplate
and breaking strip
- Chromed and rectified solid steel guides
- Direct view on scoring wheel
and cutting line
- Wide fixed tile stop
- Supplied with carrying bag
- 30", 37" or 51" Viper Tile Cutter
- 3/8" (10 mm) Premium quality
scoring wheel
- Adjustable tile stop
- Integrated tile supports
- Carrying bag
|
|
 |
|
| |
|
| Cutting Length max. |
[Inch] |
30 |
37 |
51 |
| Cutting Length Diagonal |
[Inch] |
Tile max. 21 x 21 |
Tile max. 26 x 26 |
Tile max. 36 x 36 |
| Cutting Height |
[Inch] |
7/8 |
7/8 |
7/8 |
| Breaking Power |
[lbs] |
3,300 |
3,300 |
2,800 |
| Dimensions |
[Inch] |
38 x 12½ x 6 |
46 x 12½ x 6 |
60 x 12½ x 6 |
| Weight |
[lbs] |
25 |
28.5 |
34 |
| Part Nr. |
-- |
00.10.079 |
00.10.081 |
00.10.083 |
|
|
|
| |
 |
|
| |
|
|
|
| |
|
|
| |
|
|
|
| |
|
|
| |
|
|
|
| |

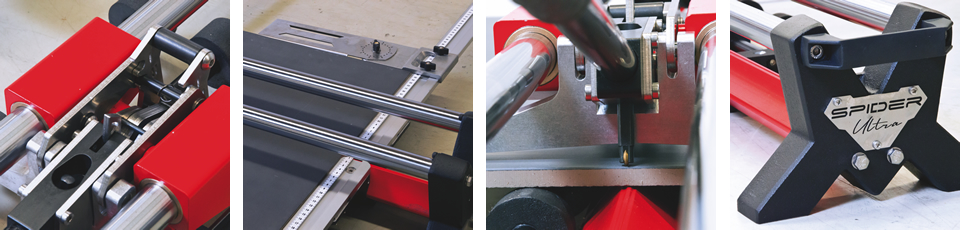

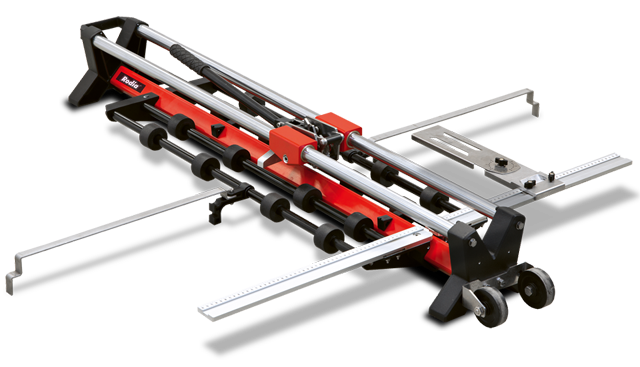

Spider Ultra Series
Manual Tile Cutters for Large Format Ceramic Tile up to 72".
Available as 41", 51", 61" and 72" model
- Breaking Power 5,000 lbs
- Smart Breaker
- Angular Measuring System for repetitive cuts at any angle
- For the use with Rodia Scoring Wheels
- Integrated Tile Supports & Roller System
- Rodia Spider Ultra Tile Cutter
- 3/8" Titanium Scoring Wheel
- Tile Stop and Ruler
- Roller System
- Transportation Handles
- Tile Supports
- Transportation Wheels
- Protective Cover
|
 |
|
| |
|
|
|
| |
| Cutting Length max. |
[Inch] |
41 |
51 |
61 |
72 |
| Cutting Length Diagonal |
[Inch] |
Tile max. 27 x 27 |
Tile max. 36 x 36 |
Tile max. 43 x 43 |
Tile max. 51 x 51 |
| Cutting Height |
[Inch] |
1/16 - 5/8 |
1/16 - 5/8 |
1/16 - 5/8 |
1/16 - 5/8 |
| Breaking Power |
[lbs] |
5,000 |
5,000 |
5,000 |
5,000 |
| Dimensions |
[Inch] |
57 x 13 x 8 |
67 x 13 x 8 |
77 x 13 x 8 |
89 x 13 x 8 |
| Weight |
[lbs] |
58.5 |
64 |
71.5 |
76 |
| Protective Cover |
-- |
no |
yes |
yes |
yes |
| Part Nr. |
-- |
00.11.105 |
00.11.130 |
00.11.155 |
00.11.185 |
|
|
| |
|
|
|
| |
 |
|
| |
|
|
|
| |
|
|
| |
|
|
|
| |
|
|
| |
|
|
|
| |
 |

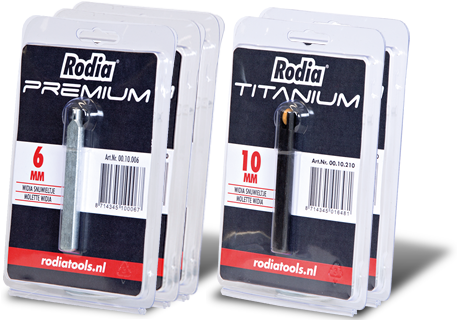

Premium & Titanium
Professional Premium Quality Scoring Wheels
for Rodia Manual Tile Cutters
| Scoring Wheel Premium 1/4" (6 mm) |
00.10.106 |
| Scoring Wheel Premium 3/8" (10 mm) |
00.10.110 |
| Scoring Wheel Premium 3/4" (18 mm) |
00.10.118 |
| Scoring Wheel Titanium 3/8" (10 mm) |
00.10.310 |
| Scoring Wheel Titanium 3/4"(18 mm) |
00.10.318 |
| Scoring Wheel Titanium with bearing 7/8" (22 mm) |
00.10.322 |
|
|
| |
|
|
|
