Made to Cut
Built to Last

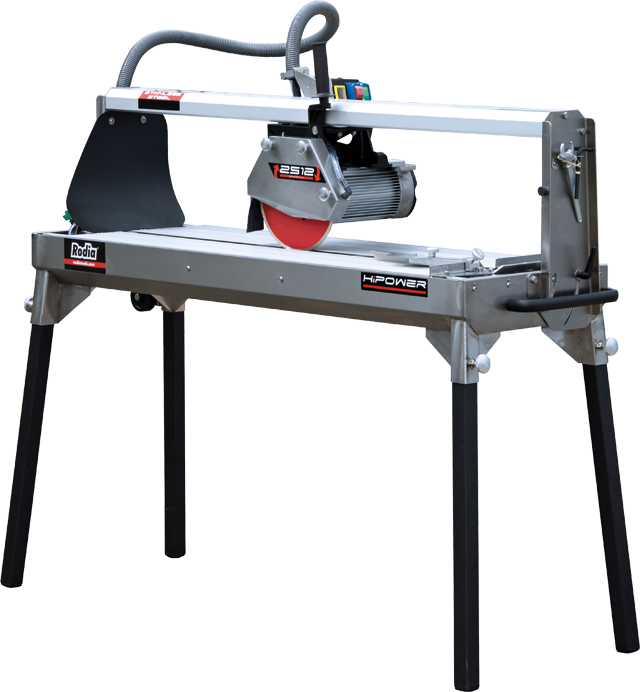

250 Series
10" Tile Saws

Professional 10" Stainless Steel Tile Saws
designed to deliver Fast and Chip Free
Cutting on Ceramic, Porcelain, Marble and
Granite Tile, etc.

  • Cutting Lengths up to 72"
  • Stainless Steel
  • Superior Bridge Style Design
  • Powerful 2HP Direct Drive Motor

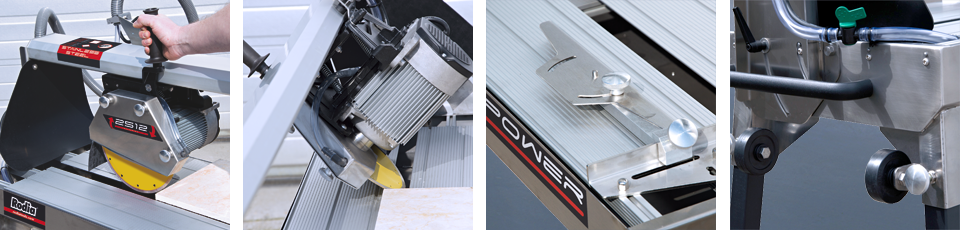

  • Integrated Miter and Plunge Cutting Capability
  • Blade Diameter 10"

Supplied with:

  • 10" Rodia® Premium Tile & Stone
    Wet Cutting Blade
  • Detachable Legs
  • Adjustable Tile Stop
  • Water Pump
  • Tool Set
  • Operating Manual

Technical Specifications Rodia 259RS Rodia 2512RS Rodia 2515RS Rodia 2518RS
Motor [V/Hz] 115/60 115/60 115/60 115/60
Power [HP] 2 2 2 2
Blade RPM [RPM] 3,360 3,360 3,360 3,360
Blade Diameter [Inch] 10 10 10 10
Arbor [Inch] 5/8 5/8 5/8 5/8
Rips Tile max. [Inch] 34 48 59 72
Diagonal Cuts Tile max. [Inch] 25 x 25 33 x 33 41 x 41 51 x 51
Cutting Height max. [Inch] 2 2 2 2
Miter Cutting -- yes yes yes yes
Plunge Cutting -- yes yes yes yes
Weight [lbs] 115 137 154 178
Dimensions (excl. legs) [Inch] 48 x 19 x 24 61 x 19 x 24 73 x 19 x 24 84½ x 19 x 24
Part Nr. -- 01.25.901 01.25.121 00.25.152 00.25.182






Watch the Instruction Video






Diamond Tile Blade   Diamond Tile Blade

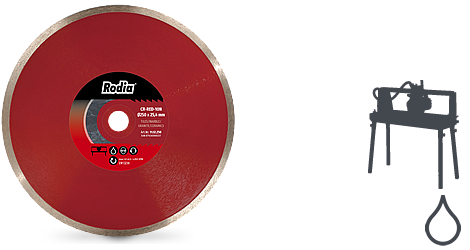

Premium Tile & Stone

Premium Quality Diamond Wet Blade with Continuous Rim.
For Porcelain, Ceramics, Marble & Granite.

  • Diamond Height: 10 mm
  • Arbor Ø 5/8"

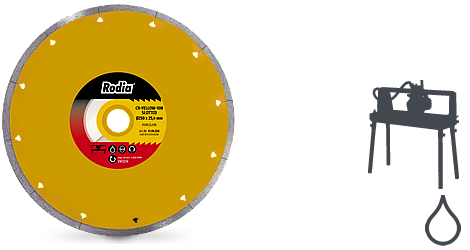

Porcelain Slotted

Extra Thin Premium Quality Diamond Wet Blade with Continuous Rim.
For Porcelain, Glazed Porcelain.

  • Diamond Height: 10 mm.
  • Arbor Ø 5/8"
Diameter Arbor Part Nr.
8" 5/8" 01.12.200
10" 5/8" 01.12.250
12" 5/8" 01.12.300
14" 5/8" 01.12.350
16" 5/8" 01.12.400

Diameter Arbor Part Nr.
  8" 5/8" 01.05.200
  10" 5/8" 01.05.250
  12" 5/8" 01.05.300
  14" 5/8" 01.05.350

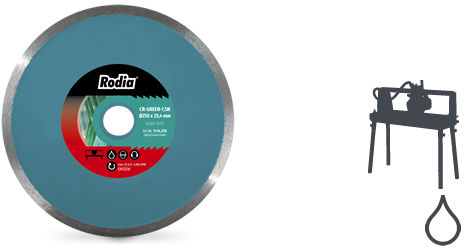

Glass

Premium Quality Diamond Wet Blade with Continuous Rim.
For Glass Tile.

  • Diamond Height: 7.5 mm.
  • Arbor: Ø 5/8" - 7/8".

Diameter Arbor Part Nr.
  5" 5/8" - 7/8" 01.14.125
  8" 5/8" 01.14.200
  10" 5/8" 01.14.250
